Hot Selling Wedge Anchor Bolts Heavy Duty Metal

Hot Selling Wedge Anchor Bolts Heavy Duty Metal

$0.091000-4999 Piece/Pieces

$0.065000-9999 Piece/Pieces

$0.03≥10000Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Shanghai,Lianyungang

Contact Now

Product Description

Product Attributes

Brand: ShiJingChangTian

Type: Fastener

Color: silver

Standard: DIN

Material: Stainless Steel 304 / 316

Surface Treatment: Plain, Polishing

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	We will pack and ship according to customer's requirements
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

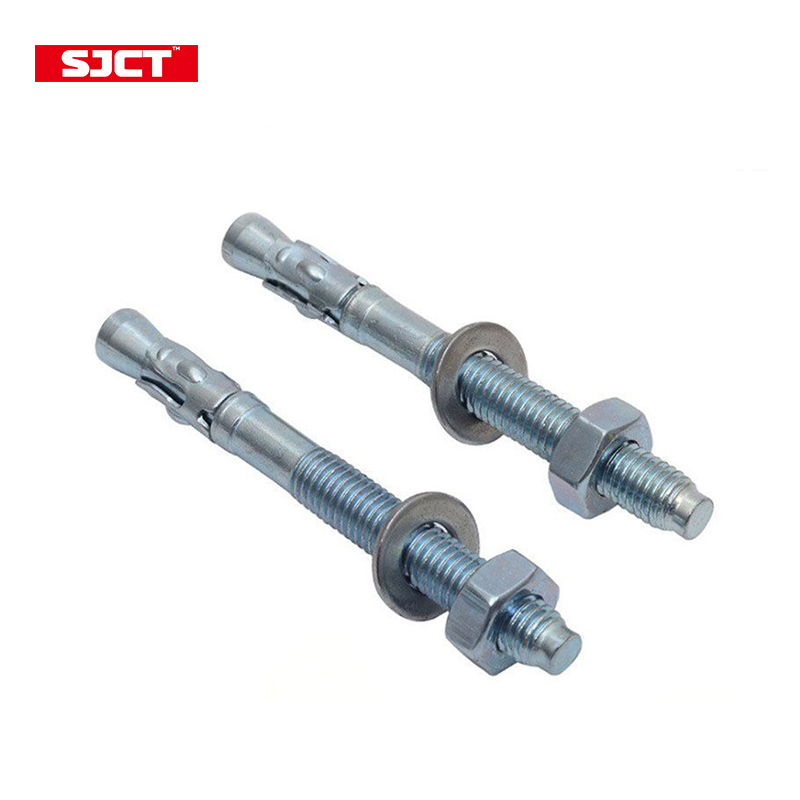

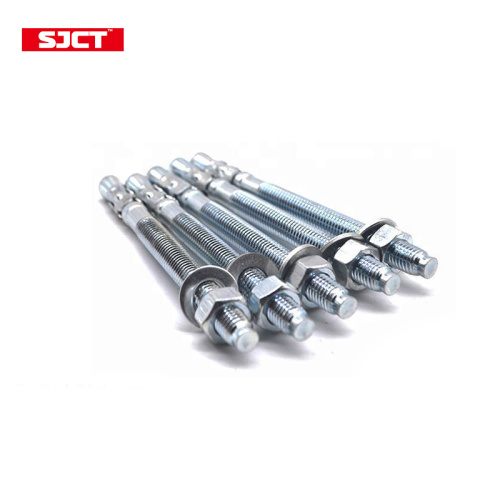

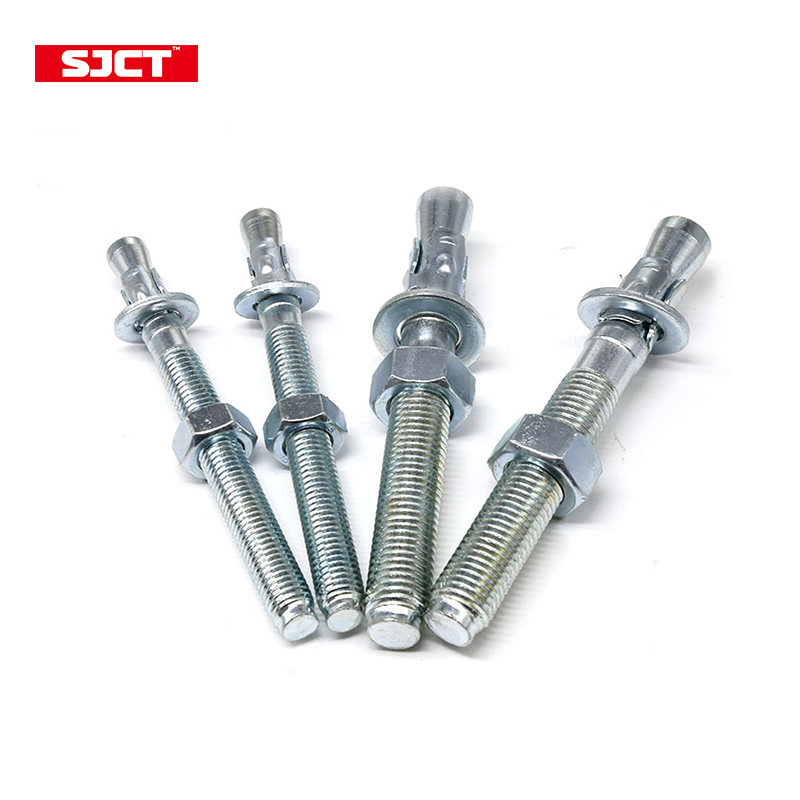

Hot Selling Wedge Anchor Bolts Heavy Duty Metal

◆ Installation Instructions 1. Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit conforming to ANSI B94, 12-77, the same diameter as the wedge anchor. If the fixture being fastened is in place and being used as a template to locate the hole for the anchor, the mounting hole in the fixture should afford clearance for the universal wedge clip on the stud. 2. Clear the hole of all debris 3. Place the wedge anchor through the hole in the fixture or directly into the concrete, and hammer it in to the drilled hole, ensuring that they are installed to the desired depth. 4. Turn the Nut by hand until the unit is "snugged up". Tighten the nut with a torque wrench to ensure they are tightened to the required torque value.

◆ Product Description

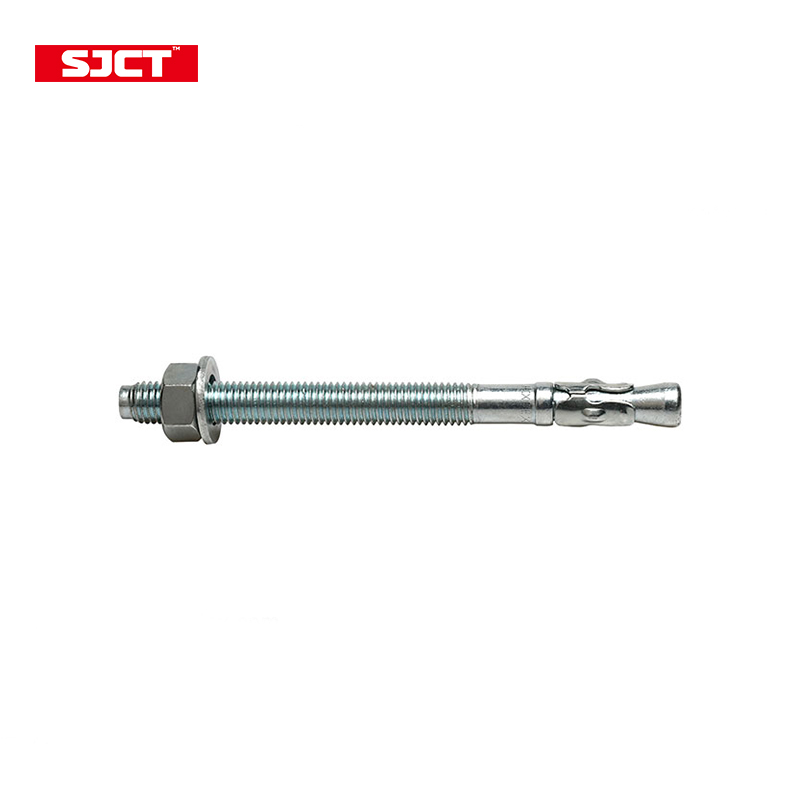

The Wedge Anchor is composed of two pieces that are permanently preassembled into a single unit.
The carbon steel rod is threaded over a portion of its length.
The extreme end of the threaded portion is rounded to prevent the threads from being damaged when the anchor is driven into the hole drilled in the concrete.
The other end of the rod has a reduced diameter for a short distance, at the end of which it tapers outwardly to the full diameter of the rod.
A precisely formed universal clip made of carbon steel is permanently assembled around the reduced diameter to complete the anchor.
Each package contains the correct quantity of nuts and washers.
